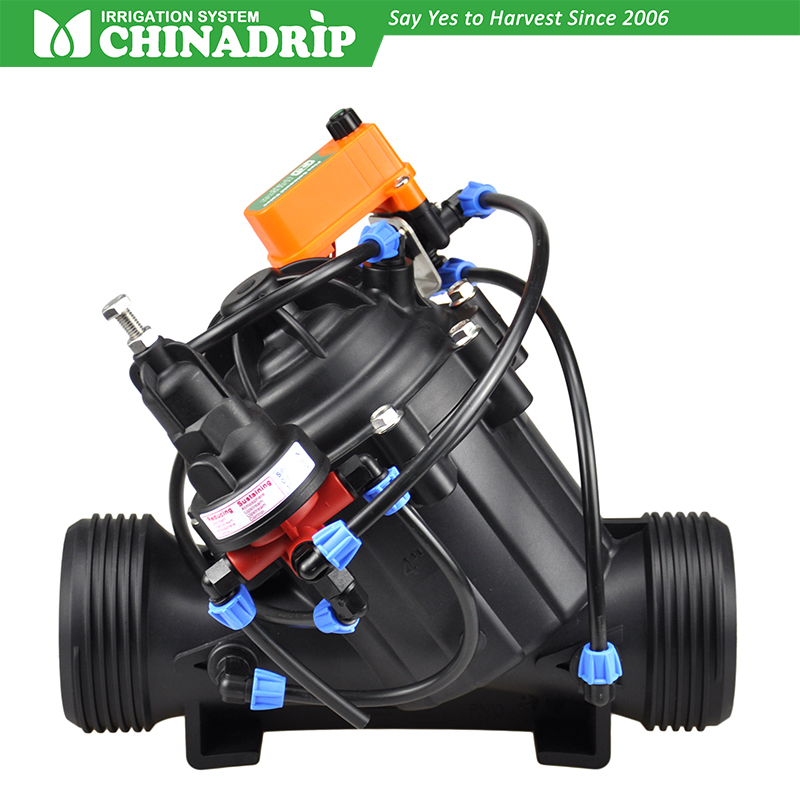

วาล์วลดความดัน (พร้อมโซลินอยด์วาล์ว) หน้าแปลน 4 "
ความได้เปรียบ:
วาล์วควบคุม Hidraulic กับไดอะแฟรมเหนี่ยวนำคงที่ภายในปิดหรือเปิดโดยการควบคุม Hidraulic
ประเภท Y ที่ออกแบบช่องทางขนาดใหญ่และคายประจุขนาดใหญ่หัวเล็กสูญเสียความไวในการตอบสนองและความแม่นยำสูงสำหรับ
การปรับ
ไดอะแฟรมเหนี่ยวนำที่มีความยืดหยุ่นและคู่มือของแกนวาล์วคงที่ดีทนต่อการกัดกร่อนและไม่เสียรูป
ใช้งานง่ายเป็นการควบคุมแบบไฮดรอลิกประหยัดความพยายามในการปิดหรือเปิดและบำรุงรักษาที่สะดวก
ผลิตโดยวัสดุพลาสติกเสริมแรงพร้อมฟังก์ชั่นไฮดรอลิกและกลไกที่ยอดเยี่ยมใช้งานได้นาน
รายการ NO:
E12MHV01100Fการชำระเงิน:
T/T, L/Cแหล่งกำเนิดสินค้า:
Xiamen, Chinaสี:
Blackท่าเรือขนส่งสินค้า:
Xiamen
- รายละเอียดสินค้า
Application:
Suitable to be installed in Main line or Sub Line to avoid the following drip syestem or mircosprinkler
system to damage by high pressure
Working Pressure : 0.35-10bar (5-145psi).
Pressure Adjusting Range: 0.8-6.5bar (11-95psi).
Connecting Mode: Female Thread/ Clamping /Flange
How to operate:
1. Installed this valve to Pipe line according to the arrow pointed to inlet and outlet. O-Ring should be used if installed with flange.
2. Ensure all connectors & adaptors are well tighten and no leakage. Or should be fixed again
3. Operating:
a. Turn the Three Way Control Valve to "AUTO".
b. Install a Pressure Gauge at the outlet of pressure reducing valve.
c. Loose the Locking Nut at the top of Pilot.
d. Adjust the Screw until the pressure up to requirement.
e. Tighen Locking Nut.
4. For closing Valve, turn the Three Way Control Valve to "CLOSE".
